*CV5 mineral resource (109.2 Mt at 1.42% Li2O and 160 ppm Ta2O5 inferred) is reported at a cut-off grade of 0.4% Li2O with effective date of June 25, 2023. Mineral resources are not mineral reserves as they do not have demonstrated economic viability.

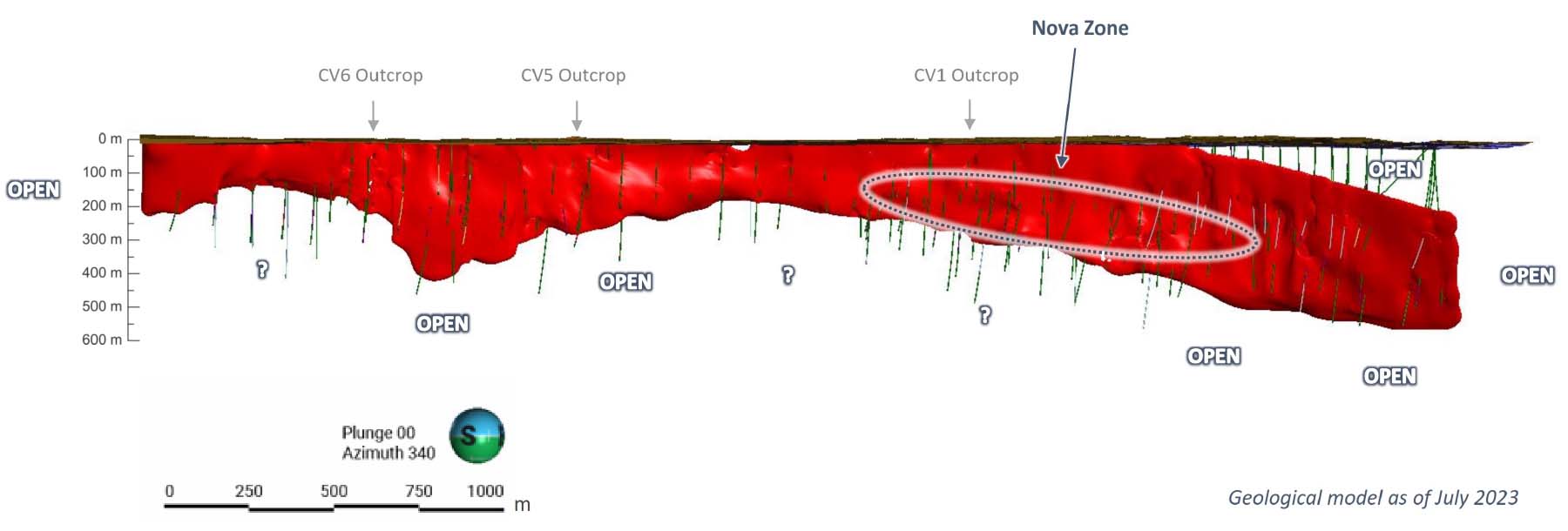

(Above) Side view of CV5 Spodumene Pegmatite geological model looking northerly (340°) – principal pegmatite and subordinate lenses.
The principal pegmatite contains ~93% (101.8 Mt) of the total inferred resource tonnage (109.2 Mt) at CV5*.
(Above) Side view of CV5 Spodumene Pegmatite geological model looking northerly (340°) – principal pegmatite only.
*CV5 mineral resource (109.2 Mt at 1.42% Li2O and 160 ppm Ta2O5 inferred) is reported at a cut-off grade of 0.4% Li2O with effective date of June 25, 2023. Mineral resources are not mineral reserves as they do not have demonstrated economic viability.

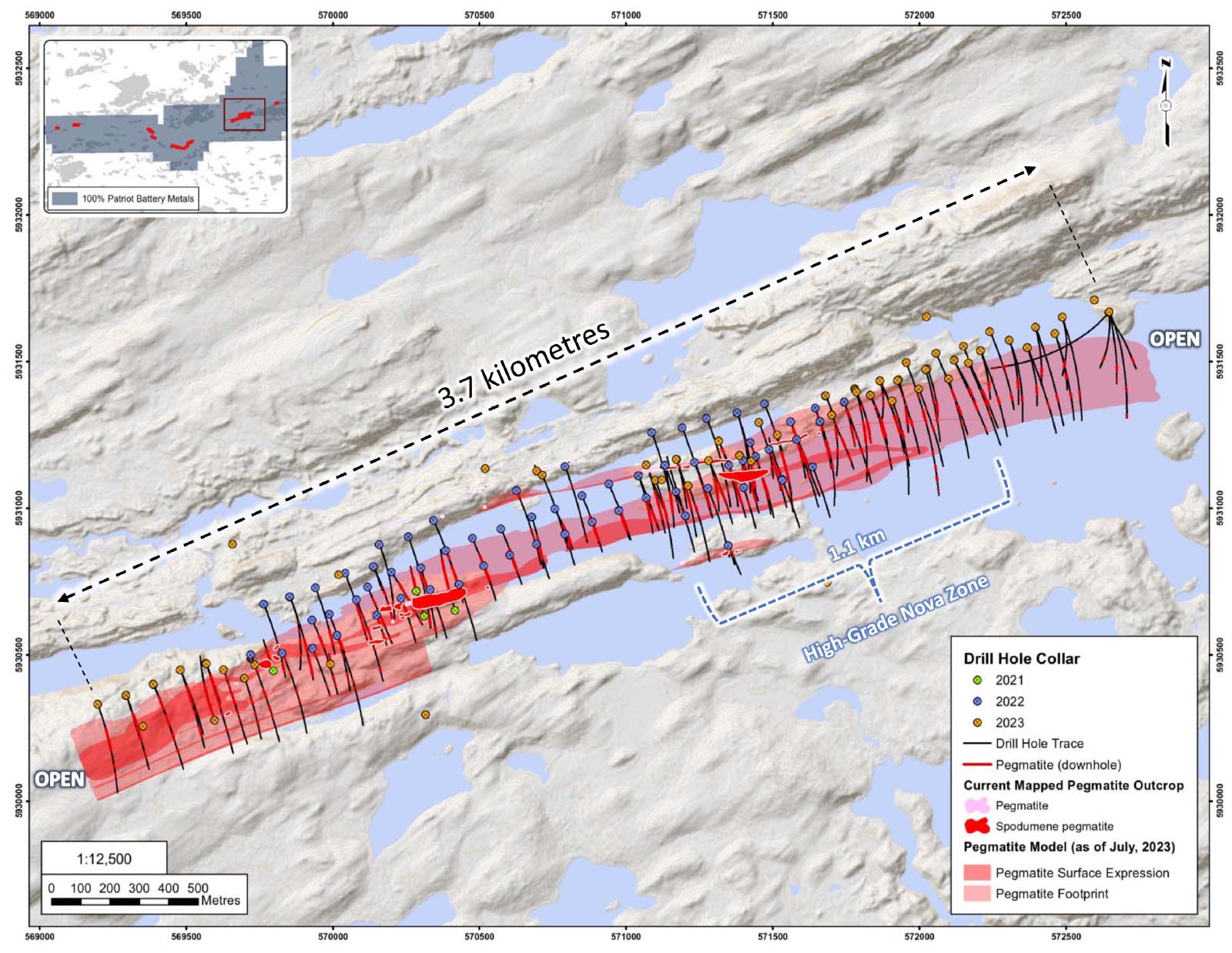

The CV5 mineral resource* block model, at a pit-constrained inferred level of confidence, incorporates ~3.4 km of the total 3.7 km long pegmatite as has been defined by drilling to date.

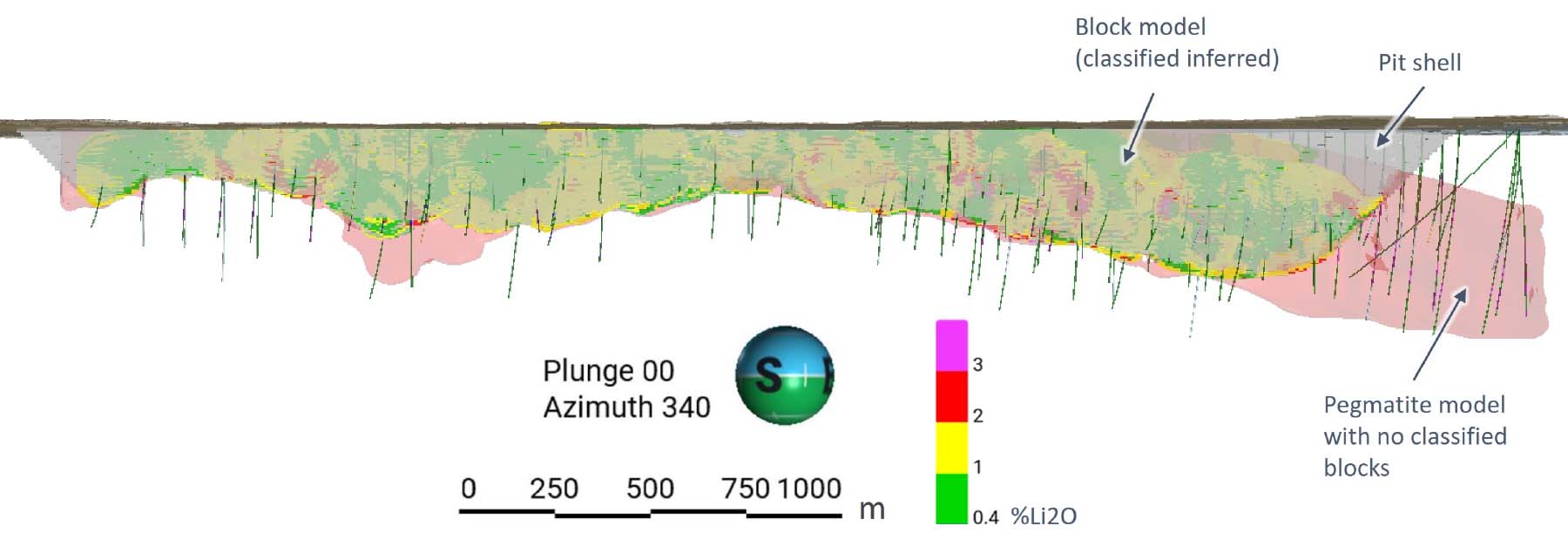

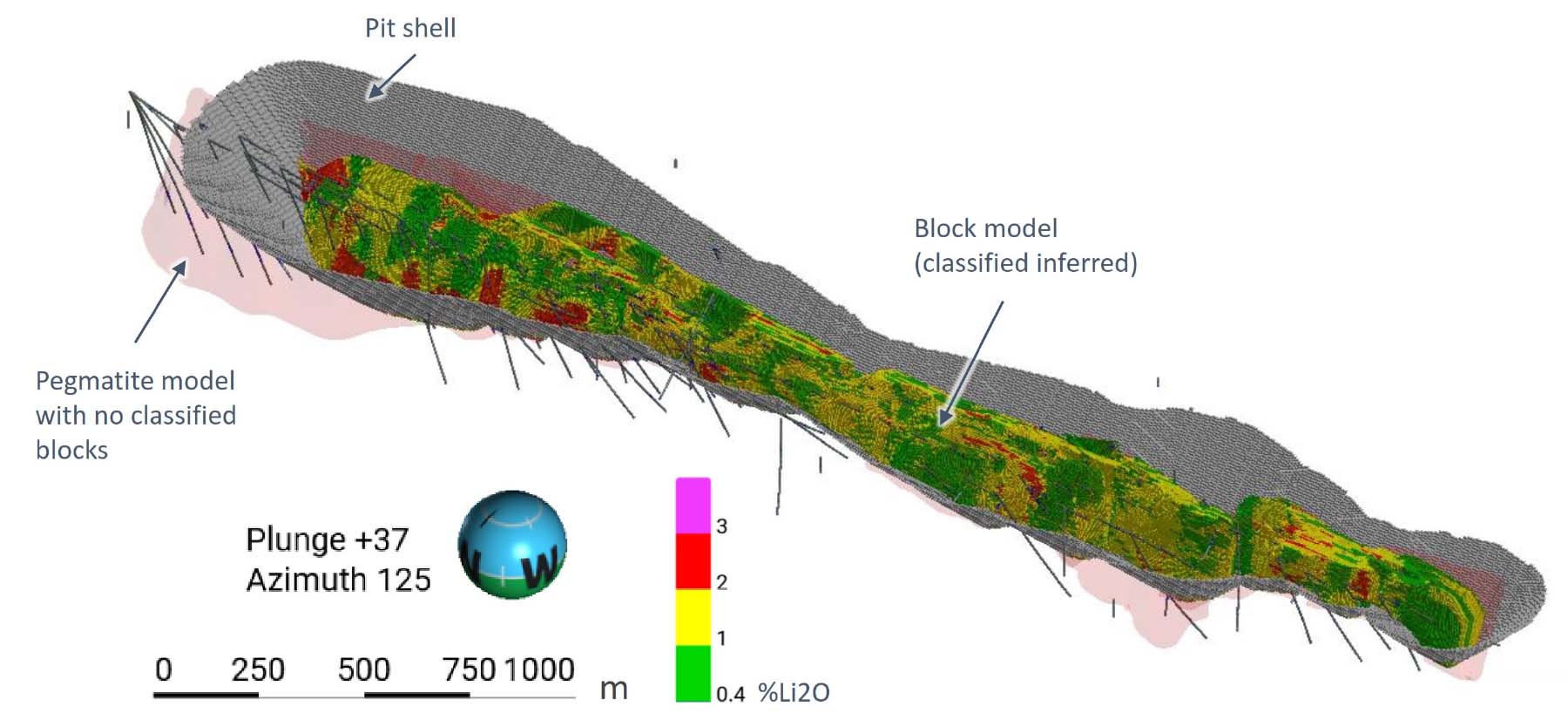

(Above) Select views of the pit constrained, inferred classified block model.
*CV5 mineral resource (109.2 Mt at 1.42% Li2O and 160 ppm Ta2O5 inferred) is reported at a cut-off grade of 0.4% Li2O with effective date of June 25, 2023. Mineral resources are not mineral reserves as they do not have demonstrated economic viability.
Cut-off grade sensitivity analysis defines very high-grade and significant tonnage at high cut-off grade, and excellent grade with significant tonnage at low cut-off grade:
This table should not be interpreted as a mineral resource statement. The data is presented to demonstrate the mineral resources sensitivity to various cut-off grades. The selected cut-off grade for the base case is 0.40% Li2O with the revenue factor 1 pit shell constraint.
*CV5 mineral resource (109.2 Mt at 1.42% Li2O and 160 ppm Ta2O5 inferred) is reported at a cut-off grade of 0.4% Li2O with effective date of June 25, 2023. Mineral resources are not mineral reserves as they do not have demonstrated economic viability.
“The technical information herein has been prepared in accordance with the Canadian regulatory requirements set out in NI 43-101 and reviewed on behalf of the Company by Mr. Darren L. Smith, M.Sc., P.Geo., and Vice President of Exploration for Patriot Battery Metals., a Qualified Person and registered permit holder with the Ordre des Géologues de Québec”
